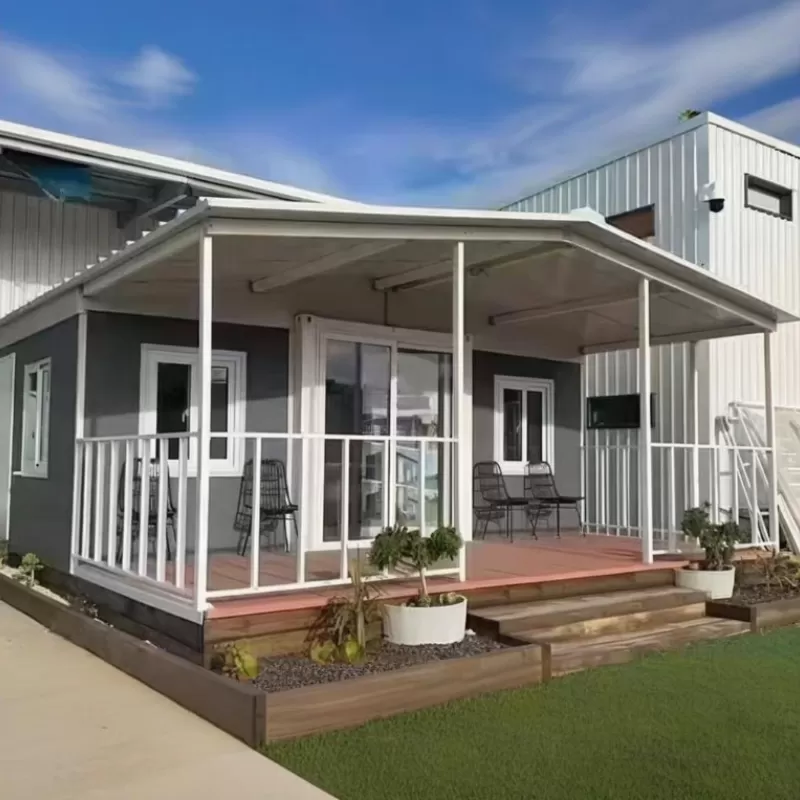

Collapsible Mobile Expansion Home with Patio

Parameter

Specification / size

• 20 foot flat top wings

  Expansion size L5900 * W6420 * H2450mm

  Internal dimensions L5740 * W6260 * H2250mm

  Folding size L5900 * W2250 * H2450mm

  Covering an area of 38 square meters

  Container quantity: 2 sets in a 40 foot high container

• 30 foot flat top wings

  Expand size L9000 * W6420 * H2450mm

  Internal dimensions L8550 * W6260 * H2210mm

  Folding size L9000 * W2250 * H2450mm

  Floor area of 58m

  Container quantity: 1 set in a 40 foot high container

• 40 foot flat top wings

  Expansion size L11800 * W6420 * H2450mm

  Internal dimensions L11650 * W6260 * H2210mm

  Folding size L11800 * W2250 * H2450mm

  Covering an area of 76 square meters

  Container quantity: 1 set in a 40 foot high container

Advantage

• Compared to traditional activity board houses: In terms of raw material selection, the frame material of the double wing product is thick, with a large cross-section, strong stability, and better safety. The sandwich density of the composite board is higher, the process is more refined, and the service life is longer, up to 20-25 years, with more guarantee for later use. Traditional activity board houses require on-site splicing, while double wing products can achieve prefabricated and refined decoration in the factory, and can be moved in immediately upon landing.

• Sturdy structure: It can withstand earthquakes and typhoons, and the size of structural components is customized according to sea freight container loading, greatly exceeding the component size of ordinary steel structure houses. Through high-strength connections, a strong overall structure is formed, which can withstand earthquakes of magnitude 8 and typhoons of magnitude 12. It can also belong to expandable and foldable emergency rescue temporary houses.

• Packing and transportation: After the prefabrication of the house is completed, it is folded and stored for easy packing. Combined with the size design and production of sea freight containers, they can be directly used for sea and land transportation. They are sturdy and convenient, greatly saving space during transportation and storage, thereby reducing transportation and storage costs.

Customized Requirements

• Customization diversity: Design layouts for optional installations based on different scenarios and needs.Wall panels can be selected from multiple options based on customer needs, including appearance color, insulation performance, and fire resistance level. Commonly available panels include rock wool board, EPS board, polyurethane board, glass wool board, Great Wall board, graphite polystyrene bamboo wood fiber integrated board, etc

• Indoor flooring can be made of SPC stone plastic flooring, patterned aluminum panels, etc. It can also be used to pour cement flooring and lay floor tiles on site; Steel doors, aluminum alloy doors, broken bridge aluminum doors, KFC doors, anti-theft doors, etc. can be used as entrance doors; Window options include plastic steel windows, aluminum alloy windows, and bridge cut aluminum windows;

• Electrical distribution standards: Replace certified circuit systems according to different countries.

• Convenient to use: movable, expandable, high reuse rate, factory pre assembled, doors, windows, and circuits are prefabricated in the factory, and on-site installation only needs to be placed at designated locations,

• Unfold and secure, install indoor roof corners, skirting boards, connect water and power sources, put in furniture and appliances, and you can move into a finely decorated house with just one bag, minimizing on-site workload.

Application

• Quick unfolding and folding: The double wing expansion house adopts prefabricated components, which can be easily assembled and fixed to complete the construction without the need for large equipment and professional construction personnel, making the construction process more efficient and convenient.

  01

• Lightweight and durable: The high-strength galvanized frame and environmentally friendly composite materials make the double wing expansion house have excellent portability and durability, making it easy to transport and install.

  02

• Flexible and versatile space: Twin wing expansion rooms can be personalized and customized according to user needs, providing multiple sizes and layout options to meet the space requirements of different scenarios.

  03

• Good living experience: The double wing expansion house has good insulation, heat insulation, and sound insulation performance, and is equipped with integrated circuits, lighting, furniture, and other facilities to provide users with a comfortable living experience.

  04

• Environmental sustainability: The double wing expansion house is made of environmentally friendly materials and can be recycled, which is conducive to protecting the environment and saving resources.

  05

• Multi scenario applicability: The double wing expansion house is suitable for various scenarios such as house expansion, temporary residence, tourism vacation, disaster relief, etc., providing users with a wide range of application choices.

  06
