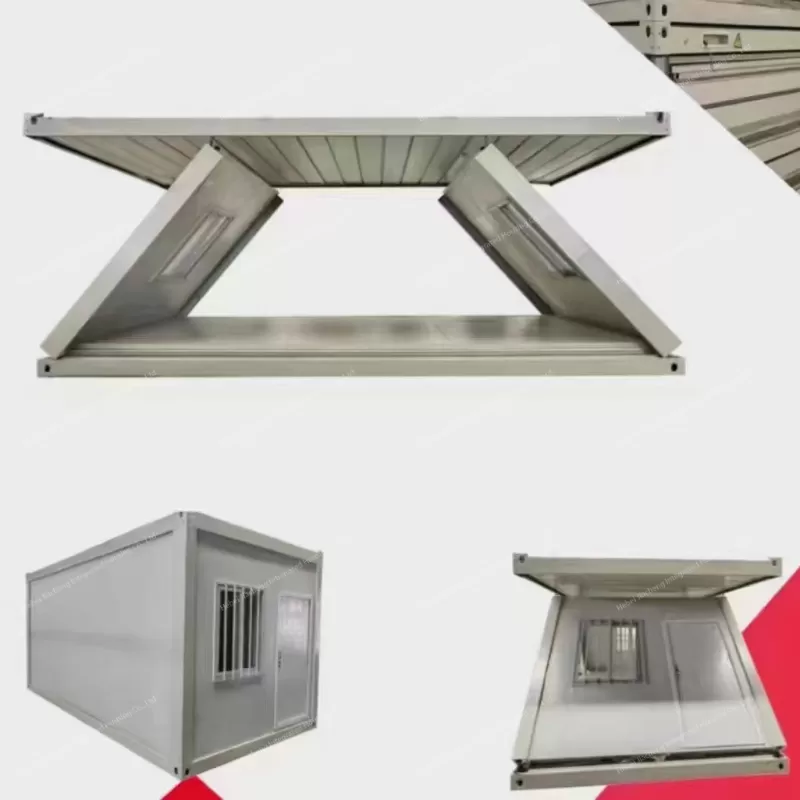

Portable Folding Packing Container

Structure

Advantages of Packing Container Houses

• Quick Installation, Time Saving

  Packing container house adopts modularized design, the main structure is prefabricated in the factory, and only lifting, splicing and fixing are required at the site, usually a building can be completed in 1-2 days, which significantly shortens the construction cycle.

• Strong integrality and high stability

  Due to the use of all-steel structural frame and standardized connection, the seismic and wind resistance of the packed box house is better than that of the ordinary movable panel house, which is suitable for use in harsh environments.

• Convenient transportation and low cost

  Packing box house can be transported as a whole without disassembling, which reduces the loss and labor cost in logistics. A standard flatbed truck can transport multiple units, suitable for long-distance deployment.

• Environmental protection and energy saving, reusable

  Materials can be recycled, no construction waste during disassembly and installation, in line with green building standards. When relocating, only the whole unit needs to be lifted and transported, no need to rebuild, and the economy of long-term use is remarkable.

• High comfort and strong adaptability

  Adopting heat insulation and sound insulation materials, some high-end products are equipped with air-conditioning and fresh air systems to meet the comfort needs of residence and office. At the same time, it can adapt to different climatic conditions such as high temperature, severe cold and humidity.

• Flexible combination, diversified functions

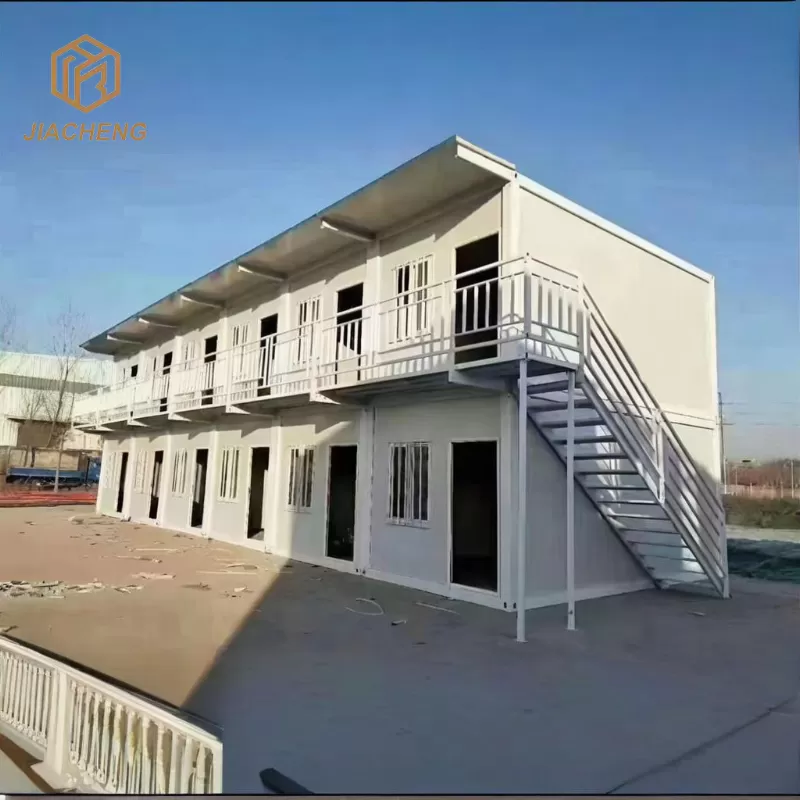

  Supporting multi-unit splicing, it can form single-story or multi-story buildings to meet the spatial needs of different scenarios, such as dormitory buildings, office buildings, commercial complexes, and so on.

Application Scenarios of Packing Container Houses

• Emergency Disaster Relief Resettlement: In emergencies such as earthquakes, floods, epidemics, etc., the packed box house can be quickly deployed as a temporary hospital, isolation point or resettlement house for disaster victims, providing a safe and hygienic living environment.

• Commercial and Retail Space: Suitable for flash stores, convenience stores, cafes, exhibition halls, etc. The appearance can be customized and designed to attract customer flow and enhance brand image.

• Tourism and Vacation Facilities: As B&Bs, camping hotels, scenic reception centers, etc., the packed box houses are both aesthetically pleasing and practical, especially suitable for eco-tourism projects.

• Education and Medical Facilities: Used for temporary schools, kindergartens, vaccination stations, mobile clinics, etc., to solve the public service needs in remote areas or emergency situations.

• Military and Field Operation: Provide movable barracks, command posts or workstations for the military, scientific research teams, oil exploration, etc., adapting to harsh environments.

• Urban Temporary Building: In cities where land is tight, packaged box houses can be used for temporary offices, shared spaces, creative studios, etc., flexibly responding to short-term land needs.

Note on Packing Container House

• Foundation treatment: Before installation, it is necessary to ensure that the ground is leveled and compacted, and if necessary, pour a concrete foundation or lay a steel frame to prevent the structure from being deformed due to settlement.

• Wind and earthquake prevention measures: In typhoon or earthquake prone areas, it is necessary to strengthen the structural connection (e.g. bolt fixing, diagonal bracing reinforcement) and select models with high wind resistance rating.

• Wind and earthquake prevention measures: In typhoon or earthquake prone areas, it is necessary to strengthen the structural connection (e.g. bolt fixing, diagonal bracing reinforcement) and select models with high wind resistance rating.

• Insulation and moisture-proofing: In cold areas, additional insulation (e.g. polyurethane foam) should be added; in humid areas, waterproof treatment is required to prevent water seepage or mold on the walls.

• Compliance and Approval: Some cities have approval requirements for temporary construction, so it is necessary to consult the local housing and construction department in advance to ensure compliance with fire, land use and other regulations.

• Transportation and lifting: Packing box houses are large in size, and routes need to be planned for transportation to avoid height and width restricted roads. Use professional equipment when lifting to prevent collision damage.

• Maintenance and upkeep: Regularly check the rust and corrosion of the steel structure and make up the paint in time; clean up the accumulated water on the roof to prevent deformation caused by long-term loading.

Customizable Contents of Packaged Container House

• Size and Layout

  - The standard size is 20 feet or 40 feet, and non-standard lengths (e.g. 10 feet, 30 feet) can also be customized.

  - The internal layout can be designed as single room, suite, loft duplex, etc. to meet different functional requirements.

  01

• Materials and Structure

  - Frame: high-strength steel (economic and durable), aluminum alloy (lightweight), galvanized steel (rust-resistant).

  - Wall panels: color steel plate (economic), rock wool plate (fireproof and soundproof), aluminum composite plate (beautiful).

  - Roof: flat roof, sloped roof (water-proof), optional solar panel integration.

  02

• Door and window design

  - Door type: single door, double door, rolling door, glass door (commercial use).

  - Windows: fixed windows, sliding windows, floor-to-ceiling windows, shutters (ventilation and sunshade).

  03

• Interior decoration

  - Floor: non-slip tiles, wood flooring, epoxy flooring (industrial style).

  - Walls: paint, wallpaper, decorative panels (upgrading).

  - Ceiling: bare ceiling, suspended ceiling (to hide pipes and wires), integrated LED lighting.

  04

• Functional facilities

  - Circuit system: pre-built wire channel, socket, switch panel, support smart home.

  - Water Supply and Drainage: add bathroom, kitchen, shower room (waterproof treatment required).

  - HVAC: Installation of split air conditioner, floor heating, new air conditioning system.

  05

• Appearance customization

  - Corporate VI: spraying brand logo, customized color matching (e.g. for commercial use).

  - Creative design: wood grain finish, green plant wall, art graffiti (Netflix punch point).

  06
