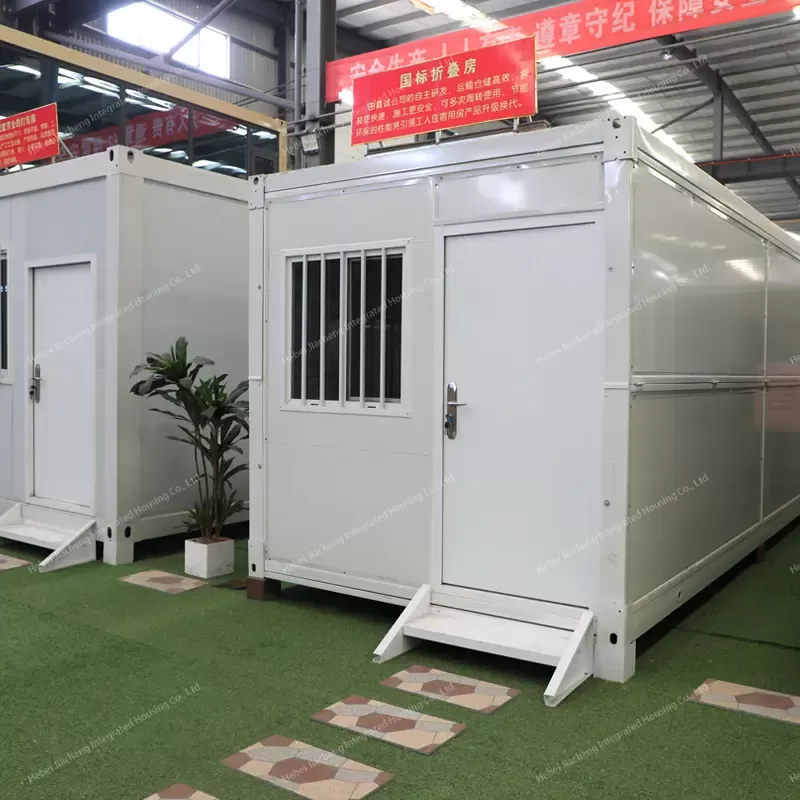

Folding House
Folding container is an innovative modular building with foldable design for easy transportation and storage. Its main structure is usually made of high-strength steel or aluminum alloy, paired with color steel plates, fireproof sandwich panels or composite materials as the enclosure. When being transported or left unused, the container's wall panels and top can be folded up to significantly reduce its volume; when in use, it quickly forms a solid enclosed space by unfolding and locking.
In addition to general uses such as temporary housing, warehousing, logistics, retail spaces, and mobile offices, folding containers are increasingly used as portable garages for vehicles and equipment. When configured as a garage, the unit can include roll-up doors for vehicle access, reinforced flooring for weight support, and ventilation features to prevent moisture buildup. Security locks and weatherproof construction make them suitable for outdoor use in a wide range of environments.
Folding containers come in a variety of sizes, with common specifications including 20 feet (about 6 meters) and 40 feet (about 12 meters) standard sizes, and heights generally ranging from 2.5-3 meters. Some of the products adopt modularized design, supporting horizontal or vertical splicing to expand the area of use. In addition, folding containers can be equipped with facilities such as doors, windows, ventilation systems, circuit wiring, etc., as required, to meet the usage needs of different scenarios.
INSTALLATION PROCESS
Unlike standard portable houses, this folding container garage is specifically engineered for vehicle protection and equipment storage. Its reinforced structure, rapid deployment, and minimal storage footprint make it an ideal solution for mobile garages, workshop shelters, and on-site machinery protection.
We offer a range of innovative storage solutions including the Portable Container Garage, Foldable Storage Container, and Collapsible Garage options. Our Space-Saving Container Garage designs are perfect for maximizing limited areas, while our Modular Container Garage systems provide flexible and scalable vehicle storage tailored to your needs.

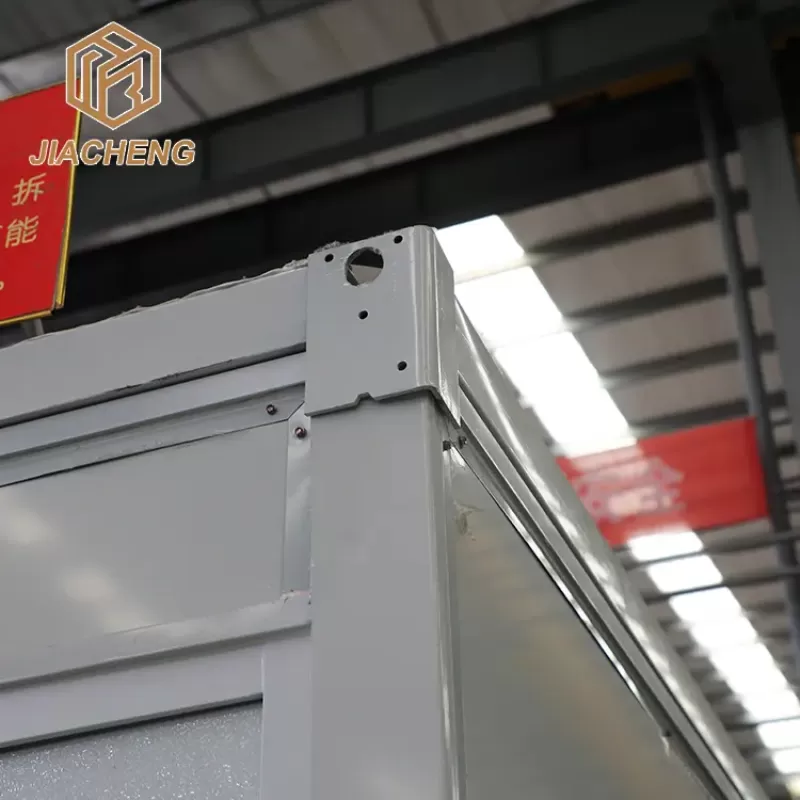

1. Anti-rust steel frame made from Q235 galvanized steel for long-term corrosion resistance
2. Fire-resistant sandwich panels (EPS or Rock Wool core) provide thermal insulation and fire safety
3. Reinforced flooring supports heavy vehicle loads up to 2000 kg, suitable for cars, SUVs, and small machinery
4. Weatherproof sealed panels with integrated rainwater drainage channels prevent water ingress and internal damage
5. Foldable design enables compact transport and efficient storage, reducing logistics costs by up to 70%

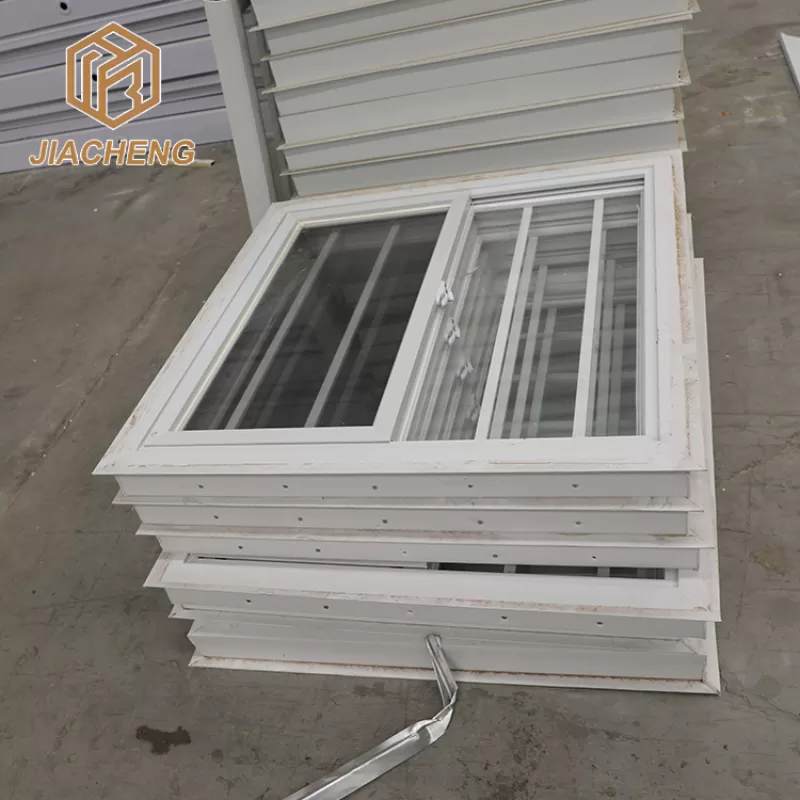

6. Double-glazed windows with optional anti-theft grilles improve security and energy efficiency
7. Secure locking system compatible with padlocks or smart locks for reliable protection against unauthorized access
8. Ventilation system with louvered windows and wall vents reduces moisture buildup, preventing mold and corrosion
9. Optional thermal insulation upgrades ensure stable interior temperatures even in extreme weather conditions

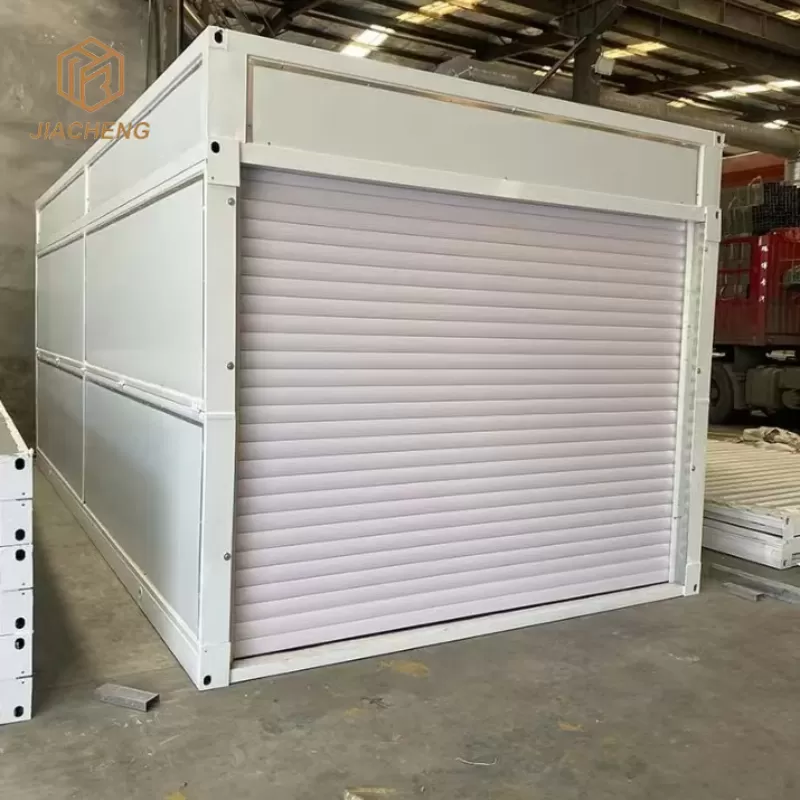

10. Roll-up door design allows smooth and quick vehicle or equipment entry and exit
11. Integrated lighting fixtures and multiple power outlets support workshop and storage needs
12. Wall-mounted tool racks and shelving options help organize equipment and accessories efficiently
13. Access ramps facilitate easy loading/unloading of wheeled vehicles or heavy machinery
14. Optional solar power system enables off-grid operation for remote sites or temporary setups
15. Lifting rings and anchor points simplify relocation and secure installation on various surfaces
Advantages of Folding Container
Low transportation and storage cost
The volume of folded container can be reduced by 60%-80%, which significantly reduces the logistics cost. For example, a standard truck can transport multiple folded containers, while traditional fixed containers can usually only be transported in a single layer, greatly improving transportation efficiency.
Low transportation and storage cost
The volume of folded container can be reduced by 60%-80%, which significantly reduces the logistics cost. For example, a standard truck can transport multiple folded containers, while traditional fixed containers can usually only be transported in a single layer, greatly improving transportation efficiency.
Reusable, environmentally friendly and energy-saving
Folding container adopts standardized production, can be disassembled and reassembled many times for use, reducing construction waste and conforming to the concept of green building.
Structurally solid, high security
Adopting high-strength steel or aluminum alloy frame, it has good wind and earthquake resistance, and some of the products have been treated with fire prevention and anticorrosion to adapt to different climatic environments.
Flexible customization, adapting to a variety of needs
Users can choose different sizes, materials, door and window layouts according to their needs, and can add insulation, electrical circuits, water supply and drainage systems, etc., to meet a wide range of uses such as office, accommodation, and commercial.
Economic
Compared with traditional construction, folding containers are less expensive and do not require long-term site rental or large-scale construction, which is suitable for projects with limited budget.
Application Scenarios of Folding Containers
Temporary housing for construction site: Used for workers' dormitories, offices, warehouses, canteens, etc. It can be quickly disassembled and transferred to the next construction site after the construction is finished, reducing project costs.
Emergency Disaster Relief Settlement
After earthquakes, floods and other disasters, folding containers can be used to quickly build temporary resettlement houses and provide a safe living environment.
Commercial & Retail
Suitable for mobile stores, temporary pavilions, flash stores, snack stalls, etc., convenient for relocation and reuse.
Logistics & Warehousing
As a temporary warehouse or mobile container, it is suitable for seasonal warehousing needs or temporary goods transit station.
Tourism and Camping
Some high-end folding containers are transformed into wild luxury tents or mobile hotels, providing a comfortable outdoor accommodation experience.
Military and Field Operation
Used for frontline command posts, temporary barracks, scientific research workstations, etc. to meet rapid deployment needs.
Temporary facilities for education and medical care
Such as temporary classrooms, vaccination sites, mobile clinics, etc. for remote areas or emergencies.
Cautions for Folding Containers
Foundation Requirements
Before installation, you need to make sure the ground is level and solid, and make concrete foundation or steel frame support if necessary to prevent settlement or deformation.
Wind and Earthquake Resistance
In typhoon or earthquake-prone areas, it is necessary to choose a reinforced structure and make good anchoring measures, such as ground bolts for fixing.
Fireproofing and insulation
If used for residence or office, choose fireproof material (e.g. rock wool sandwich panel) and check the safety of electric circuit to avoid the risk of short circuit.
Rustproofing and Maintenance
When used outdoors for a long period of time, the steel needs to be checked regularly for rust and repainted with anti-rust paint to prolong the service life.
Compliance check
Some countries or regions have approval requirements for temporary construction, so you need to know the local regulations in advance to avoid illegal construction.
Transportation restrictions
Folding containers that are extra wide or extra tall may be subject to road transportation restrictions, so you need to plan your logistics plan in advance.
Insulation and Ventilation
In extreme climate areas (e.g. high temperature or severe cold), additional insulation, air-conditioning or ventilation systems are required to ensure comfort.
Customizable Contents of Folding Container
Size and Structure
- Can be customized in different lengths (e.g. 10ft, 20ft, 40ft) and heights (standard tall container, extra tall container).
- Single-deck or double-deck design is available, and some models support modular splicing to form a larger space.
01
Material selection
- Frame: high-strength steel (economic), aluminum alloy (lightweight), stainless steel (corrosion-resistant).
- Wall panels: color steel plate (economic), rock wool sandwich panel (fireproof and soundproof), glass curtain wall (high-end commercial use).
02
Door and window layout
- Customizable door types (single door, double door, rolling door) and windows (fixed windows, sliding windows, shutters).
- Add skylights or floor-to-ceiling windows to improve lighting.
03
Interior decoration
- Floor: non-slip steel plate, wooden floor, PVC floor rubber, etc.
- Walls: simple paint, decorative panels, sound-absorbing materials, etc.
- Ceiling: bare ceiling, suspended ceiling, integrated lighting design.
04
Functional facilities
- Circuit system: pre-built wires, sockets, LED lighting.
- Water Supply and Drainage: Addition of restroom and kitchen plumbing (for lodging or restaurant use).
- Thermal insulation: add polyurethane foam or rock wool layer to adapt to extreme climate.
05
Appearance design
- Corporate VI customization: spraying LOGO and brand color matching for commercial display.
- Artistic graffiti or environmental theme appearance to enhance visual appeal.
PRODUCT ANALYSIS
Multi-color Multi-style Multi-purpose
Frequently Asked Questions
01 What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be within 10 days after receiving the deposit.
02 Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using Auto CAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures and etc., we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, etc.
03 Do you accept container loading inspection?
You are welcomed to send an inspector, not only for container loading, but any time during the production time.
04 Can you send engineers or whole team to install my project?
We will give detailed installation drawings and video for free. We can send engineers as installation director or a team upon request if you really need them to, but you should pay the costs for that.
05 Is your price competitive compared with other companies?
Our business objectives are too give the best price with same quality,or best quality with the same price. We will do everything to reduce your cost and guarantee you get the best product that you paid for.
06 You are manufacture or trading company?
We are manufacture factory. And you are welcomed to visit us at any time. The quality control and sales team will show you our professionalism. Also you will get best and most competitive price after visiting us.
