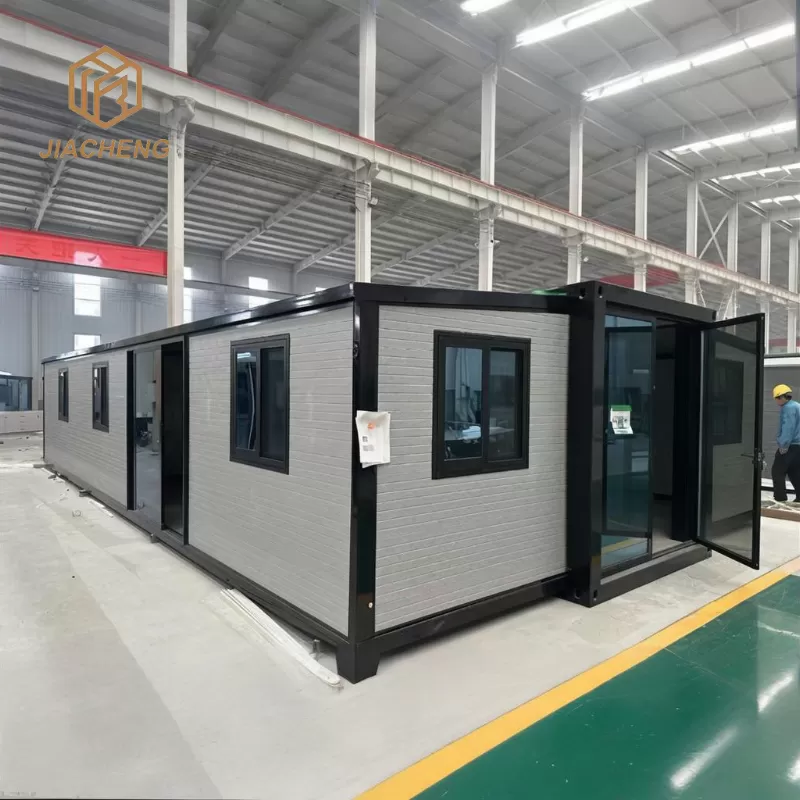

Expandable Container House Factory

As a professional expandable container house factory, we specialize in designing and producing fully-assembled modular units that can be expanded on-site within minutes. These expandable container homes are ideal for rapid deployment in construction sites, disaster relief zones, mobile offices, and remote living scenarios. With factory-direct pricing, customizable layout options, and robust structural design, our expandable houses offer flexibility, durability, and comfort.


Expandable Container House, uses galvanized high-strength square pipe, galvanized angle iron and other light steel materials asthe frame, and the anti--corrosion double-sided color steel composite plate is used as the wall. The frame question uses high-strength hinges for street connection. After reasonable design. it has expanded nearly three times, Expanded houses of 20 feet and 40 feet can be made. which can also be customized according to customer needs. It widely used for Can be use as ccomodation,living house,dormitory,camp,toilet,etc.


Fully Customizable Expanded Container Homes For Sale | Jiacheng

Expandable container houses provide a full range of customized services from basic structure to detailed design. Whether you need a 20ft expandable container home or a spacious and comfortable 40-foot expandable container house, we can accurately design according to your actual use needs.

Expandable Container House Specifications

20FT Basic CharacteristicsExternal dimension (mm)W6320*L5900*H2480(Side 2270)
Internal dimension (mm)W6160*L5560*H2240(Side 2150)
Folded state (mm)W2200*L5900*H2480
Total mass (kg)2500
30FT Basic CharacteristicsExternal dimension (mm)W6360*L9000*H2480(Side 2180)
Internal dimension (mm)W6200*L8660*H2240(Side 2060)
Folded state (mm)W2200*L9000*H2480
Total mass (kg)3750

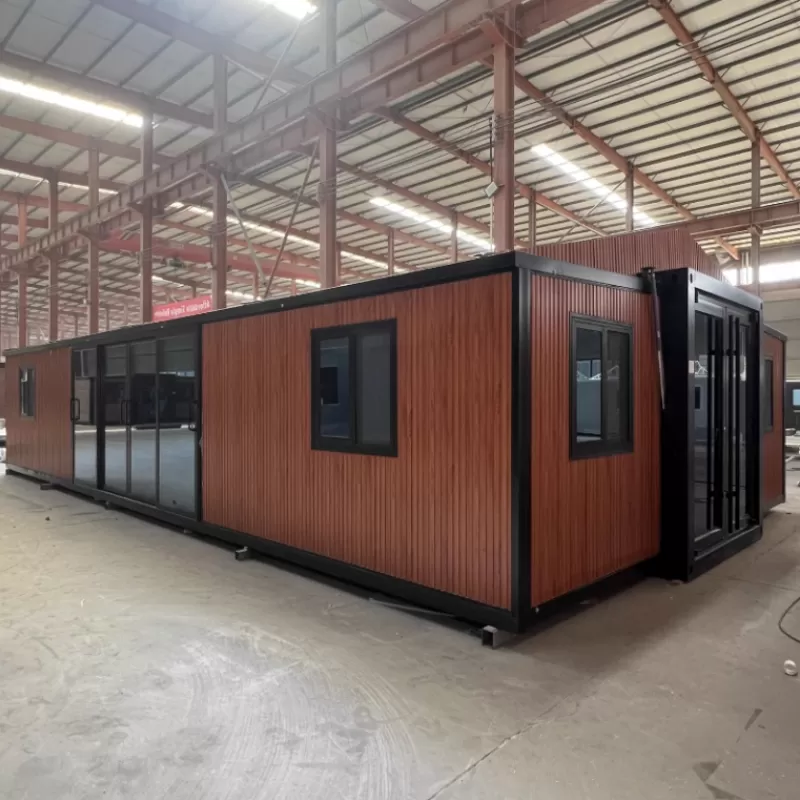

40FT Basic CharacteristicsExternal dimension (mm)W6240*L11800*H2480(Side2180)
Internal dimension (mm)W6080*L11540*H2200(Side2060)
Folded state (mm)W2200*L11800*H2480
Total mass (kg)4400
Smaller Fold SizeExternal dimension (mm)W4820*L5900*H2480(Side2270)
Internal dimension (mm)W4660*L5560*H2240(Side2150)
Folded state (mm)W700*L5900*H2480
Total mass (kg)1850



StructureGalvanized steel structure, with painting
RoofClass wool + fiberglass Sandwich panel
Wall50mm EPS Sandwich panel for external wall and partition wall
Floor18mm MGO board
AccessoriesDoorSandwich panel door
WindowCasement window
DecorationHard PVC decoration sheet for wall & roof & internal corner
Electrical systemDB, beaker, power inlet & lights
Wind resistanceGrade 11
Earthquake resistanceGrade 7
Live load capacity of roofing0.6kn/m2
Wall permitted0.6kn/m2
External and internal wall heat transmission coefficient0.35kcal/m2hc
Density of EPS8~12kg/m2
Delivery time15~20 days
Container loading2sets/HQ




Applications of Expandable Container Houses

Expandable container houses are incredibly versatile and can be used across a wide range of scenarios, including offices, living spaces, meeting rooms, dormitories, retail shops, toilets, storage units, kitchens, and shower rooms. The internal layout is fully customizable based on your needs. With partition walls and integrated facilities (such as toilets or kitchens), the units can be made ready-to-use immediately upon arrival at the site.


1. Construction Camp

Jiacheng expandable container houses are a popular choice for mobile construction camps and have been successfully delivered to countries such as the Philippines, Singapore, and Kenya. Each unit can accommodate 2–8 people, and multiple units can be connected to create larger spaces. We also provide optional furniture such as beds, wardrobes, and tables—offering a turnkey solution with no additional purchases required.


2. Family Housing

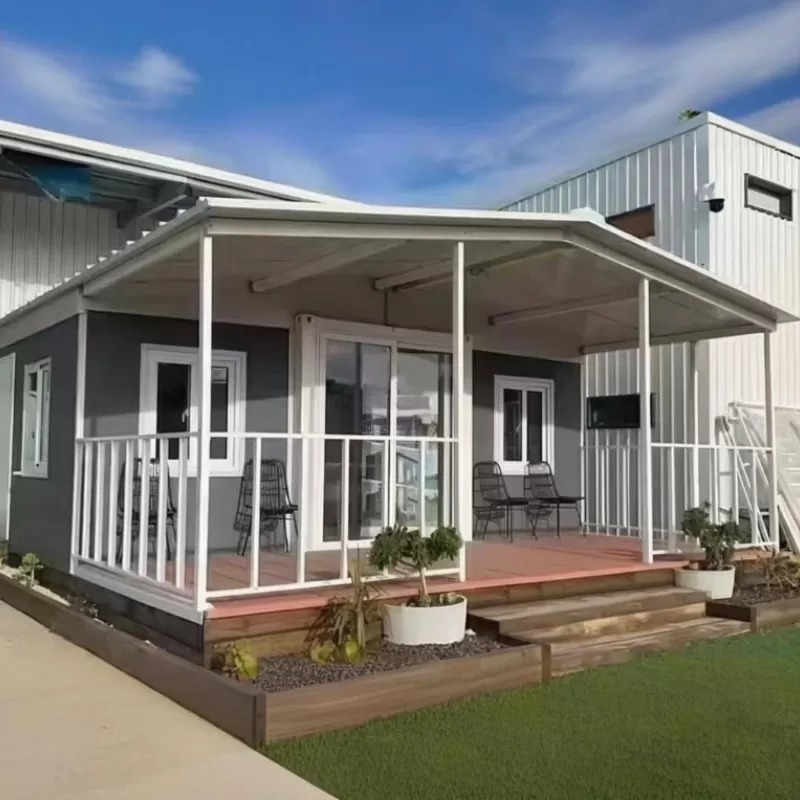

Jiacheng offers various expandable container house designs tailored for family living. Popular layouts include 96m² and 129m² models, which can be divided into bedrooms, living rooms, kitchens, and public toilets. These homes support standard electrical appliances like air conditioners and refrigerators, making them a practical, ready-to-live-in solution for both temporary and long-term use.


3. Site Office

Expandable container offices are a cost-effective alternative to traditional concrete structures, especially suitable for construction sites and oilfields. These ground-level offices can be customized with functional spaces such as meeting rooms, open-plan workspaces, and private offices. They offer a quick and comfortable solution for on-site operations with full flexibility in layout and functionality.


4. Container School

Expandable classrooms are ideal for rapidly growing student populations or temporary educational setups. A 200m² school unit can be installed by 10 workers in just 10 days. Additional modules such as offices and restrooms can be delivered together as a complete educational facility. No matter your space or time constraints, K-Home provides scalable, fast-deployment school solutions.


About the advantages of the Expandable container house

Industry advantages: Compared with the civil building, easy construction, low cost, time-saving,labor saving and convenient transportation.

Reliable structure: All the steel structure are galvanized & bake-painted.

Technical advantages: 5 steps one house.No terrain leveling required.

6 workers can install 1 unit within 1 hour.No need any tool,just manual installation.

Performance advantages: Fireproof,waterproof,corrosion-resistance,sound-insulating. Resist heavy wind of 120km/h and 8 grade earthquakes.
